JAGUAR is a brand of Xiamen East Asia Machinery Industry Co., Ltd. which is a company with over 30-year history and focusing on providing the energy-saving, efficient, and stable solution for air compression system.
PM Two-Stage VSD Air Compressor
Industry leader, first class energy standard
PM Two stage VSD screw air compressor ZLS-2i, original split structure, super large air volume, compression close to isothermal compression, beyond the national first level.
The average energy savings for you to save 30%-55%, more energy-efficient, industry pioneer.
Model : ZLS20-20i ~ ZLS100-2i
Flow Rate : 4.6 mᶟ/min ~ 60 mᶟ/min
Pressure : 0.6 ~ 1.3 Mpa
Power : 20hp ~ 350hp
ZLS-Di Low Pressure Large Discharge
Industry leader, first class energy standard
•Original IP65 permanent magnet motor, oil / water cooled technology, efficiency increased by 8%.
•With large rotor and low speed design, the performance is more stable; Permanent magnet IPM motor adopts 8 pole high speed motor, energy-saving efficiency increased by 10% compared with asynchronous motor.
•Dual VSD cooling fan, low noise, save 3% energy consumption;
•Special low pressure intake valve, oil and gas separation filter and minimum pressure valve, significantly improve the performance of the whole machine.
Model : ZLS30Di ~ ZLS350Di
Flow Rate : 8.2 mᶟ/min ~ 96.8 mᶟ/min
Pressure : 0.2 ~ 0.5 Mpa
Power : 30hp ~ 350hp

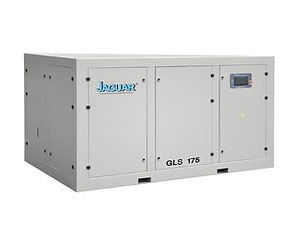

Gear Drive Heavy Duty
GLS Series Features
•Innovation profile design by JAGUAR team
•RPM low to 1500, high torque, 4 pole heave duty motor
•Super big size configuration air end
•Up to 20% noise reduced
•High efficient discharge
•Long service life design
Model : GLS60 ~ GLS350
Flow Rate : 9.4 mᶟ/min ~ 45.2 mᶟ/min
Pressure : 0.6 ~ 0.8 Mpa
Power : 60hp ~ 350hp
GLS Series is suitable especially below end users
•24 hours non-stop air supply such as electricity power plant
•Touch environment such as textile, construction material factory
•Stable pressure running such as chemical factory
•Long service life such as machinery industries
•Reliable and simple installation, operation and maintenance
•Long service life design
GLS Series is suitable especially below end users
24 hours non-stop air supply such as electricity power plant
Touch environment such as textile, construction material factory
Stable pressure running such as chemical factory
Long service life such as machinery industries
Reliable and simple installation, operation and maintenance
Long service life design
Asynchronous Direct Drive Screw Compressor
•The air-end is made of the third generation of screw profile. According to the idea of big rotor, big bearing and low speed, all the models have been designed by one. High reliability, and low speed, reduce the failure rate, guarantee the long service life if the air-end.
•Advantages of low speed
•And low noise, and reduce the stimulation to the eardrum, and effectively protects the human body.
•The intake valve and the oil pipe are special designed according to the latest research results. The internal pressure ratio is reasonable, and the oil and gas heat exchange is sufficient.
•The direct drive transmission, high transmission efficiency, reliable imported coupling, easy installation, long lastng life.
Model : ZLS10 ~ ZLS350
Flow Rate : 1.51 mᶟ/min ~ 45.2 mᶟ/min
Pressure : 0.6 ~ 1 Mpa
Power : 10hp ~ 350hp
Belt Drive Screw Air Compressor
Five advantages:
•Large displacement : the latest rotor design, large displacement.
•High energy efficiency : high volume rate, low friction loss, high mechanical efficiency.
•Low cost : simple structure, compact structure, mature and reliable product and reasonable cost.
•Less maintenance : less parts of air-end, no wearing parts, low maintenance cost.
•Quick Change : the change of work pressure demand only needs simple replacement of belt pulley, convenient and quick.
Belt German imported belt, transmission efficiency higher, longer service life.
Air/Oil Filter Imported materials, effectively protect the air compressor, greatly prolong the life of air compressor.
Electrical Control Internationally renowned components, reliable, safe, easy to operate.
Portable Air Compressor With Tank 7.5Hp ~20Hp
EAS series can selectively match with portable air tank,which meets the requirements of possible mobile
Operations and is able o go wherever you want.
Model : EAS07-260 ~ EAS20-400
Flow Rate : 1 mᶟ/min ~ 2.5 mᶟ/min
Pressure : 0.7 ~ 1 Mpa
Power : 7.5hp ~ 20hp
Air Cooled Piston Compressor ( One Stage & Two Stage )
The Crankshaft
It is made of advanced ductile iron with high strength and wear resistance.
Bearings
High strength, high temperature resistance, wear resistance, precision bearings, long service life.
Heat Radiation Fin Tube
High efficiency fin copper tube, reduce exhaust temperature.
Connecting Rod
Advanced alloy material, precision machining.
Piston Ring
It adopts a piston ring with special abrasion resistance and high temperature resistance, and the replacement time of the ring is extended for more than 5000 hours.
Advantages of Air Cooled Piston Air Compressors
•Less compression ratio, higher efficiency, more power saving.
•The main parts are produced by advanced numerical control processing equipment with high accuracy and high reliability.
•Compressor has the advantages of simple and compact structure, low oil consumption, low noise, stable operation, good performance and long service life.
•The efficient intermediate cooling buffer improves the compressor efficiency, reduces the power consumption, reduces the discharge temperature and prolongs the service life.
Air Cooling Oil-free Piston Air Compressor
•100% completely oil-free, providing clean compressed air. Self lubrication piston ring and sealing bearing, no oil in crankcase.
•The entire process of compression is no oil, so the resulting compressed air is naturally 100% oil-free
•Widely used in medical, food, micro-electronics, laser and other requirements of completly oil-free compressed air occasions.
Model : OL-80 ~ OL-200
Flow Rate : 0.45 mᶟ/min ~ 2 mᶟ/min
Pressure : 0.7 Mpa
Power : 5hp ~ 20hp
